RU1804
Pico Remote Radio Unit
N77 For Europe Private 5G Network
pRRU N77
Home
>
Products
>
Industrial Private 5G Network
>
Industrial Base Station
>
Pico Remote Radio Unit
Overview

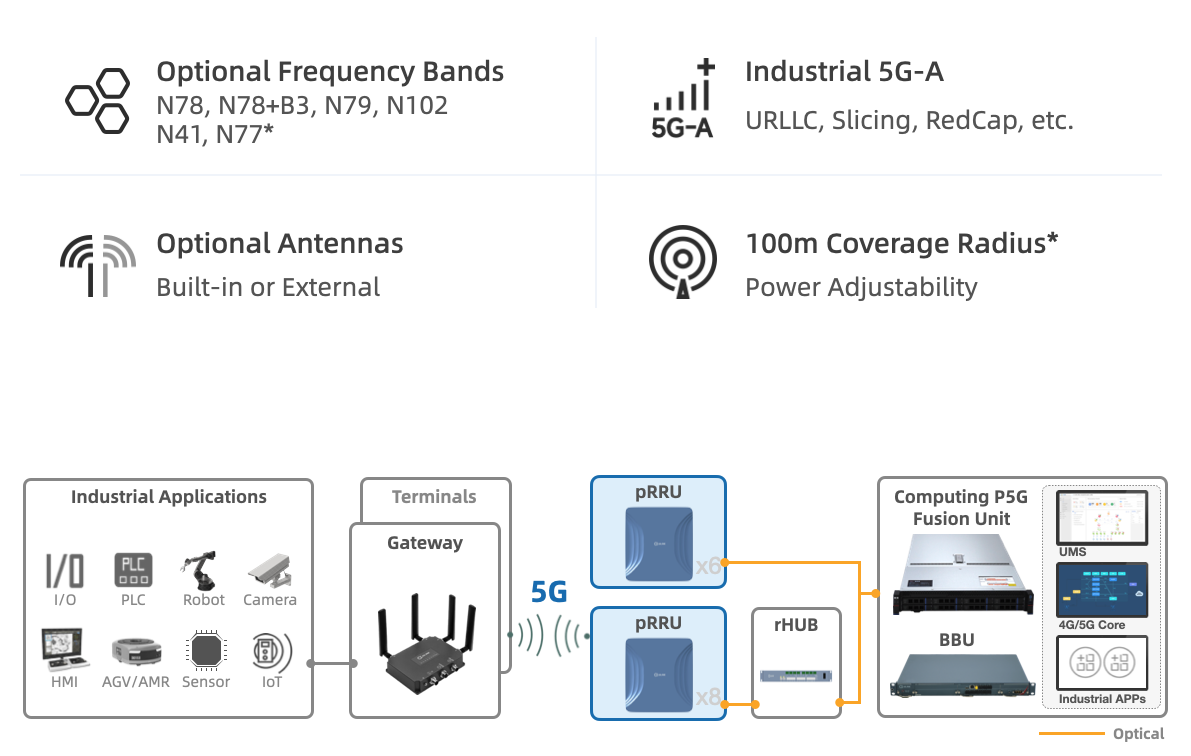

The RU1804 is a pico radio remote Unit of 5G base station, designed for Europe and targeting the N77 frequency band.
N77 3.7-4.2GHz
OBW 500MHz
5G-A to Industry*
URLLC, Slicing, RedCap
Nano-sec Synchronization
SIB9*, < 200ns precision
Specification parameters
Frequency Band：N77 3700-4200MHz
Operation BandWidth：500MHz
Instantaneous BandWidth:100MHz
Duplex Method：5G NR-TDD
Antenna：Built-in(Standard), External
Number of Channels:4T4R
Maximum Transmit Power：4 x 500mW (adaptable)
Maximum Power Consumption：50W
Parameter Size:240 x 212 x 58mm
Weight：3.0 Kg
Optical Port：1 x 10Gbps SFP+ Optical connector
Debug Interface:1 x RJ45
Remote Distance：200m, Optical/electrical hybrid cables
Power Input：DC -48V
Operating Temperature:-10℃~＋55℃
Relative Humidity：5% ~ 95%
Protection Level：IP31
Installation Method:Wall, ceiling or pole mounting
[5G-A to Industry*] & [SIB9*] In conjunction with the entire Private 5G network.
[100m Radius Coverage*] & [SIB9*, < 200ns precision ] In ideal environment.
